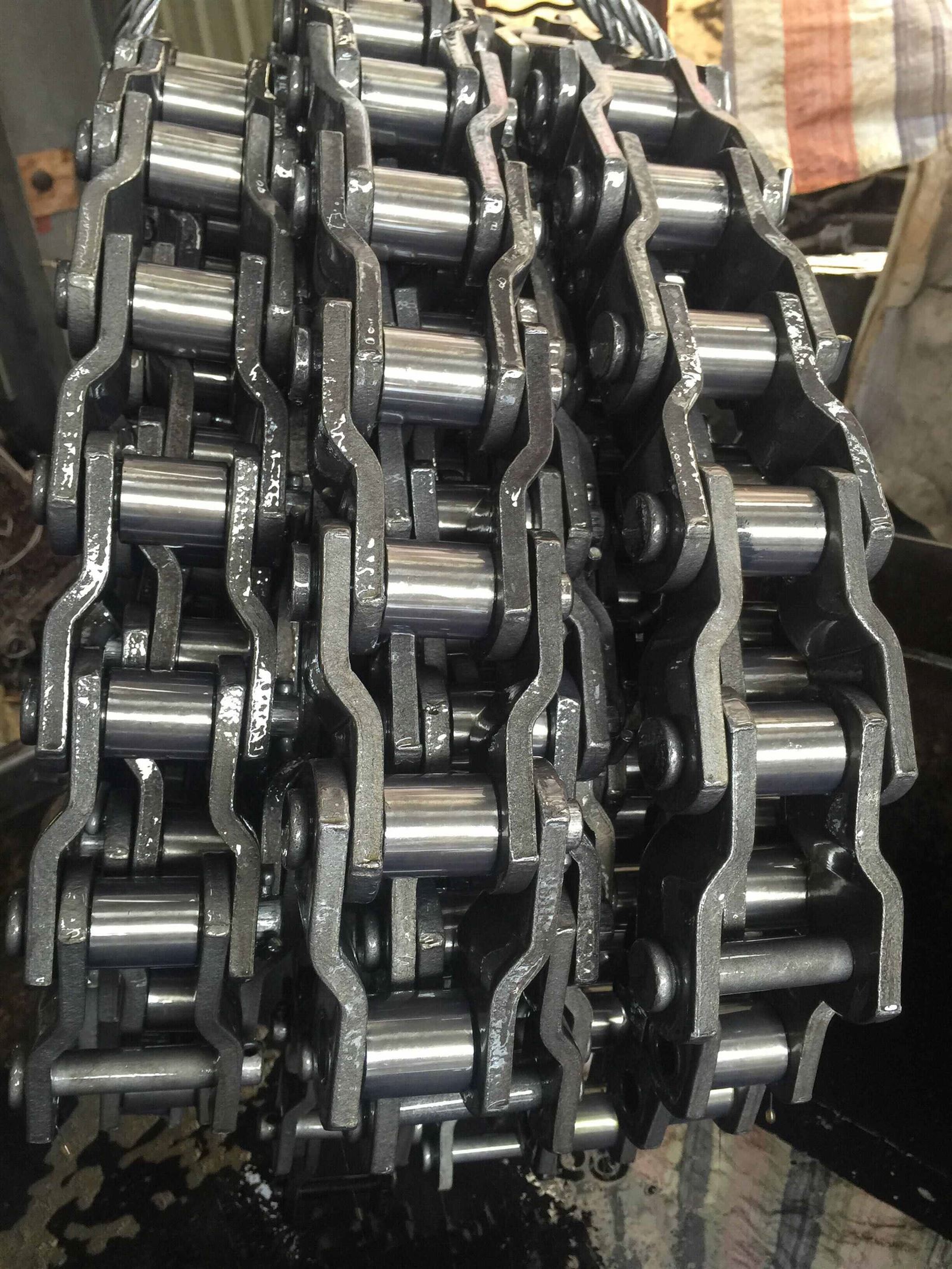

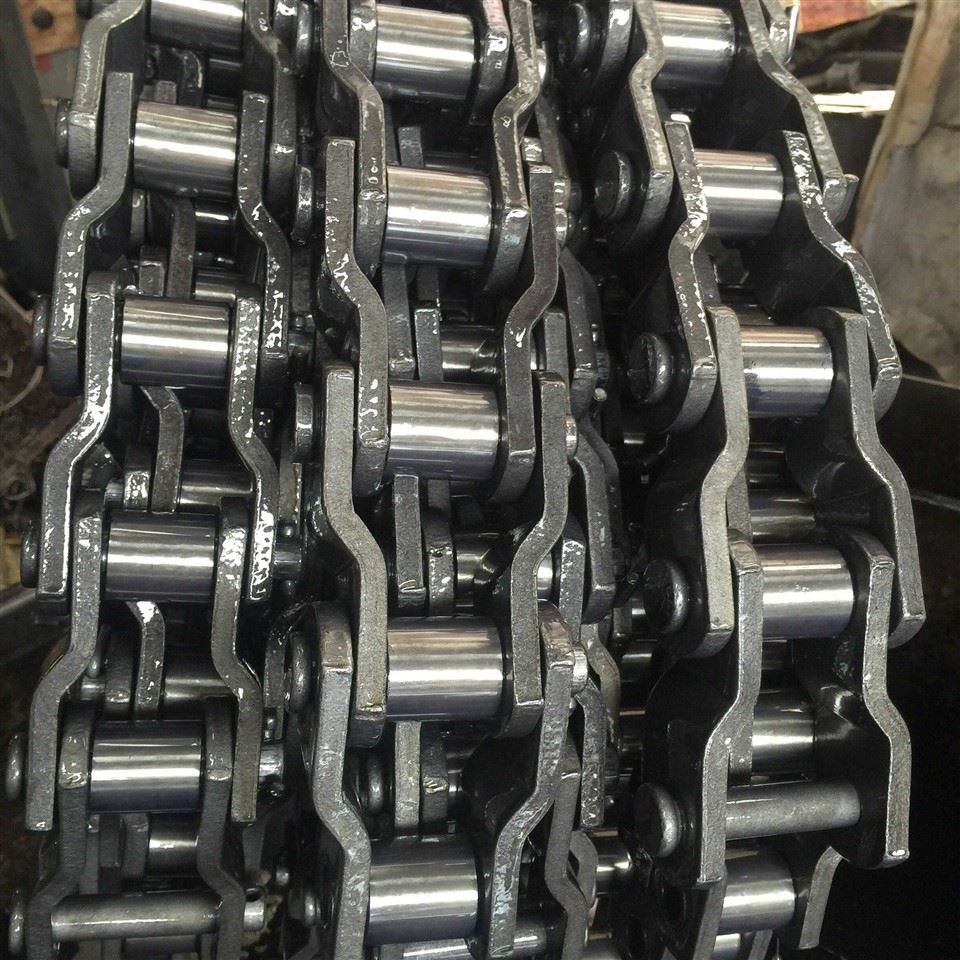

Product Overview
Heavy-duty curved plate chains are characterized by high precision, wear resistance, and fatigue resistance. Their special curved plate design makes them more suitable for heavy-impact load transmission and intermittent operating conditions with frequent starts. They are mainly used in industries such as mining, metallurgy, and construction machinery.
Product Introduction
| Brand | Hangte |
| Origin | Hangzhou, Zhejiang, China |
| Material | Manganese steel, carbon steel, alloy steel, stainless steel, etc. |
| Structure | Roller chain |
| Features | Heavy-duty power transmission |
| Color | Natural |
| Customization | Available |
Product Description
Main chain numbers and pitches: 2010 (63.5), 2512 (77.9), 2814 (88.9), 3315 (103.45), 3618 (114.3), 4020 (127), 4824 (152.4).
data table

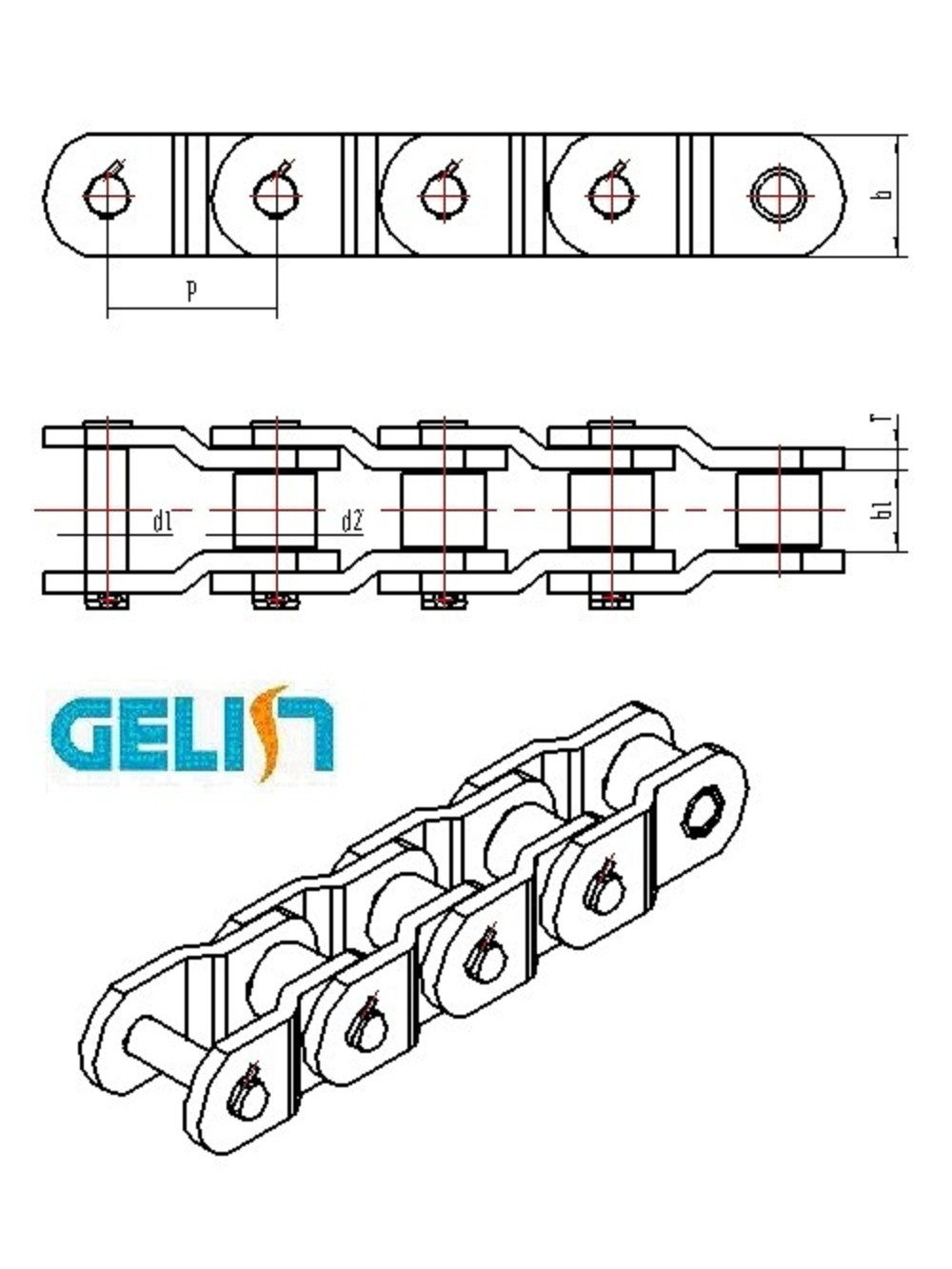

| Chain No. | Pitch p | Narrow End Inner Width b1 | Roller Diameter d2 | Pin Diameter d1 | Link Plate Height h | Link Plate Thickness T |
| 1 | 63.5 | 38.1 | 31.75 | 15.95 | 47.8 | 7.9 |
| 2 | 77.9 | 39.6 | 41.28 | 19.13 | 60.5 | 9.7 |
| 3 | 88.9 | 38.1 | 44.45 | 22.33 | 60.5 | 12.7 |
| 4 | 103.45 | 49.3 | 45.24 | 23.93 | 63.5 | 14.2 |
| 5 | 114.3 | 52.3 | 57.15 | 28.07 | 79.2 | 14.2 |
| 6 | 127 | 69.9 | 63.5 | 31.88 | 91.9 | 15.7 |
| 7 | 152.4 | 76.2 | 76.2 | 38.25 | 104.6 | 19 |
| 8 | 177.8 | 82.6 | 88.39 | 44.48 | 133.4 | 22.4 |
Precautions
1. If the new chain is too long or has stretched after use and is difficult to adjust, chain links can be removed as needed, but the number of links must be even. The chain links should pass through the back of the chain, with the locking plate inserted on the outside, and the opening of the locking plate facing the opposite direction of rotation.
2. When the sprocket is severely worn, both the sprocket and the chain should be replaced simultaneously to ensure good meshing. Do not replace only the chain or sprocket. Otherwise, poor meshing will accelerate the wear of the new chain or sprocket. When the sprocket teeth are worn to a certain extent (referring to sprockets with adjustable teeth), they should be flipped over for use to extend their service life.
3. Old conveyor chains should not be mixed with some new chains, otherwise, impacts during transmission may occur, causing the chain to break.
